## Epipolar Geometry

The epipolar geometry is the intrinsic projective geometry between two views. It is independent of scene structure, and only depends on the camera’s internal parameters and relative pose. The *fundamental matrix* encapsulates this intrinsic geometry. It is a matrix of rank 2. If a point in space is mapped to one image as , and to the second image as , then the image points satisfy the relation

. can be computed if both camera parameters are known. More about this in Section 2.3.2.

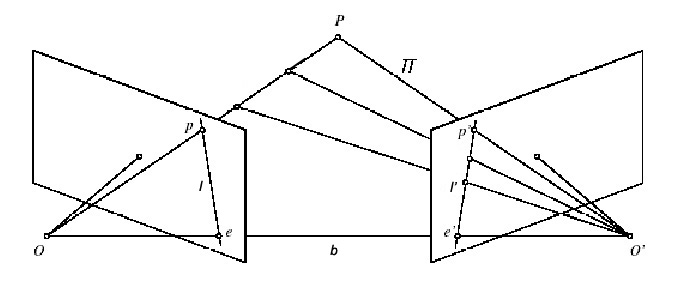

The relation between a projected point in one’s view and its corresponding point in the other view can be described geometrically. In Figure 2.7, we can see that for every point a corresponding line, on which can be found, exists. These lines are called *epipolar lines*. The intersection between the baseline and the image planes is called *epipole*. All epipolar lines intersect at the epipole.

If a point in space is known, the corresponding epipolar lines can be found by computing the intersection between the two image planes, and the plane that is formed by the baseline and the line from the optical center to the point . In Figure 2.7 the epipolar lines are denoted by and . Supposing now that we know only , we may ask how the corresponding point can be found. The plane is determined by the baseline and the ray defined by point . From above we know that the point lies inside the line which is the intersection of plane with the second image plane. In terms of a stereo correspondence algorithm the benefit is that we do not have to search the entire image for the corresponding point but only along the line . The fundamental matrix is the algebraic representation of the epipolar geometry and is discussed in the next section.
